SHANTI MOTORS

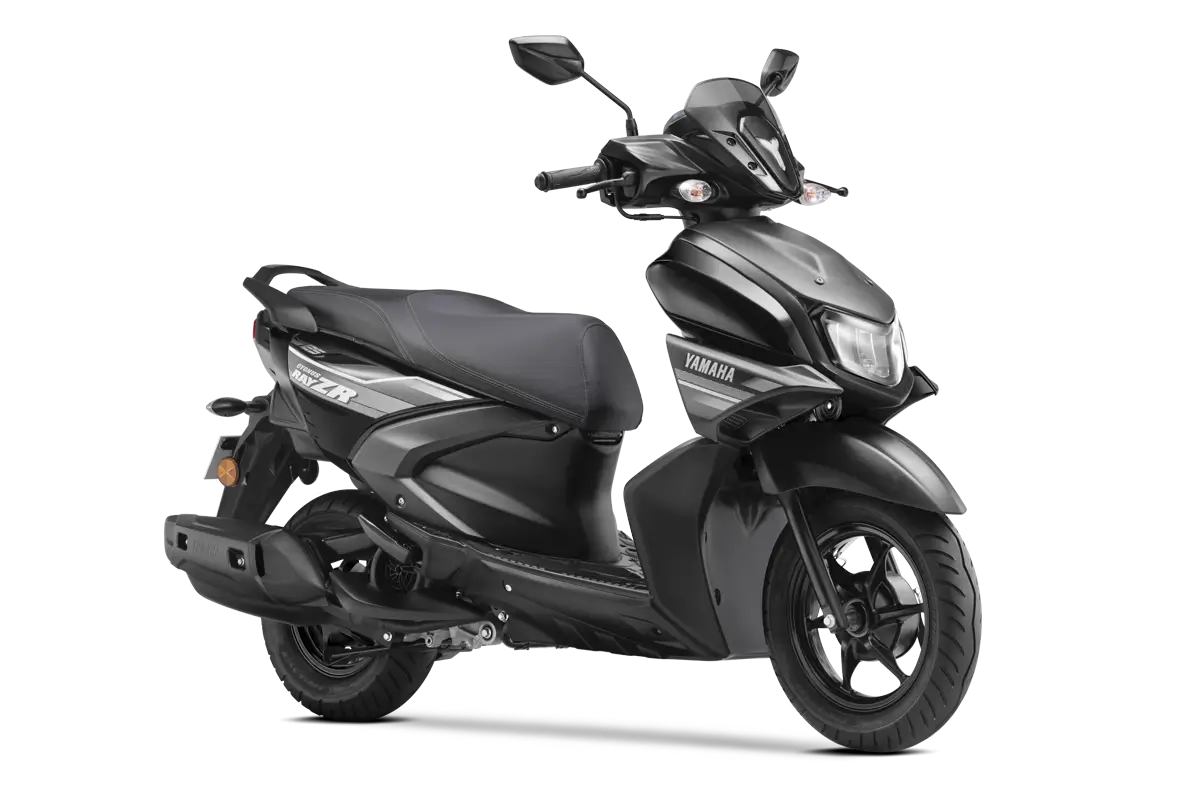

RayZR 125 Fi Hybrid Drum

RAYZ THE GAME

RayZR 125 Fi with Hybrid power assist is powered by air cooled, fuel injected (Fi), 125 cc blue core engine. The unique “Automatic Stop & Start System” prevents engine idling and subsequently starts with a single throttle twist which uses the sensors to assess the riding environment. The “Smart Motor Generator (SMG)” fitted to the RayZR 125 Fi Hybrid brings a quieter engine start without the need for a separate conventional electric starter. Headlight is equipped with LED Position Light for enhanced visibility. It comes with Digital Meter Console and Y-Connect Bluetooth connectivity to create a strong bond between Scooter and Rider.

Level-up your game with the RayZR. Zip, zap, zoom ahead of the rest, command every turn with cool confidence. And while at it, captivate everyone around you with the electrifying colours. Go on, choose your shade and raise your game.

*Digital meter, LED Headlight & Y-Connect features available in Disc variant only.

Motorcycle-Like Tough and Sporty Design

RayZR 125 Fi is built on the concept of “Armoured Energy”. A sturdy built design and weight that’s at 99kgs makes your ride agile and quick. The “Motorcycle-Scooter Evolution” design from Yamaha is also reflected in the sporty and sharp characters of the RayZR.

RayZR 125 Fi Hybrid Drum Color & Price

Sale!

Booking price Original price was: ₹86,310.Current price is: ₹2,000.

*Price may change without prior notice.
*Variant & Colour is subject to availability.

RayZR 125 Fi Hybrid Features

Light Weight Body

The new RayZR is built like a tank but doesn’t weigh like one. At 99 kgs, The reduced weight gives you a great pick up, better handling and better mileage.

Telescopic Suspension

RayZR uses telescopic suspension in front and gives you control no matter which terrain you decide to ride on. With this innovative suspension setup, every road feels like a smooth ramp no matter what its condition.

e-20-logo

E20 Fuel Compatible

E20 Fuel reduces the emissions and is wonderful option for cutting down on pollution. As part of our carbon reduction commitments, We have updated the RayZR to be compatible with E20 Fuel.

RayZR 125 Fi Hybrid Design

design_01 (1)

LED Headlight*

The RayZR is not just built tough. It's also built with a lot of panache. Take for instance the iconic LED Headlight. It's got so much style and character that it becomes an obsession. *Available only on Disc Variants

LED Position Light

Turn left or right, or go straight ahead, whatever you do, you can do it in style with the impressive LED Position Light of the RayZR.

Full Digital Instrument Cluster(with Y-Connect)*

Designed with finesse, the Digital Instrument Cluster is sharp, focused and crystal clear. You can get all the info you need with ease, while on the go. *Available only on Disc Variants

RAYZR 125 FI HYBRID gallery

RayZR 125 Fi Hybrid Specifications

Engine TypeAir cooled, 4-stroke,SOHC, 2-valveStop & Start System (SSS)Equipped
HybridEquippedFuel SystemFuel injection
Displacement125 ccStarting System TypeElectric starter and kick starter
Bore & Stroke52.4×57.9mmTransmission typeV-Belt Automatic
Maximum Torque (With Assist Function Working)10.3 N.m(1.1kgf.m)/5000 r/minSmart Motor Generator(SMG) SystemEquipped
Compression Ratio10.2:1
Maximum Horse Power6.0kW(8.2PS)/6500r/min
Overall Length x Width x HeightDisc/Drum:1,880 x 685 x 1,190 (Spec. in mm)Weight (with Oil & a Full Fuel Tank)99kg
Seat Height785mmFuel tank capacity5.2 L
Wheelbase1280mmUnderseat Storage21 L
Minimum Ground Clearance145mm
BatteryMaintenance free – 12V,5.0 AhPosition LightLED
Headlight (Class C)Disc: LED
Drum: Halogen 12V,35/35W x 1
Side Stand Engine Cut-Off SwitchEquipped
Ignition systemTCI (Transistor Controlled Ignition)Meter ConsoleDisc: Digital / Drum : Analogue
Brake light/Tail light12V,21/5W x 1Y-ConnectEquipped (Only Disc Variants)
Suspension Type(Front/Rear)Telescopic Fork/Unit SwingBrake type (Front)Disc: 190mm
Drum: 190mm
Tyre Size (Front)90/90-12 TubelessUBSEquipped
Tyre Size (Rear)110/90-10 TubelessBrake type(Rear)Drum

frequently asked questions

The Yamaha Ray ZR 125 Fi Hybrid comes in Cool & Exciting color variants such as Mettalic Black, Cyan Blue, Matte Red in Disc & Drum Variants. The Disc variant has Racing Blue & Dark Matte Blue as exclusive options. Apart from these YamahaRay ZR 125 Fi Hybrid also has Street Rally version with 3 exclusive colors MATTE COPPER, MATTE BLACK and LIGHT GREY VERMILLION

The Yamaha Ray ZR 125 Fi Hybrid is equipped with powerful and efficient, air-cooled, fuel injected (Fi), 125 cc blue core engine.

You can connect with Yamaha Ray ZR 125 Fi Hybrid disc variant using Y-Connect app on your phone to get additional ride information like trip distance, battery voltage, average speed, Last parked location and Malfunction Notification functions. Check out the details of how to connect Bluetooth. ( https://www.yamaha-motor-india.com/bluetooth-connect.html)

The Yamaha Ray ZR 125 Fi Hybrid can hold upto 5.2 liters of fuel in its fuel tank. Moreover Yamaha Ray ZR Hybrid is now E20 fuel compitable too.

The price of Yamaha Ray ZR 125 Fi Hybrid starts at ₹ 86,310 for Drum Variant (Ex-Showroom Price in Chennai) and ₹ 92,3100 for Disc Variant (Ex-Showroom Price in Chennai), and street rally at ₹ 96,610.

*Price may change without prior notice

You can book online Yamaha Ray ZR 125 Fi by paying Rs.2000 from this website
